What Is a Stator in a Motor? Complete Guide to Motor Stators for EV, Industrial, and High-Efficiency Applications
A motor stator is one of the most important parts of an electric motor. It is the stationary component that creates the magnetic field needed to produce motion. Without the stator, the motor cannot generate torque or drive rotation.

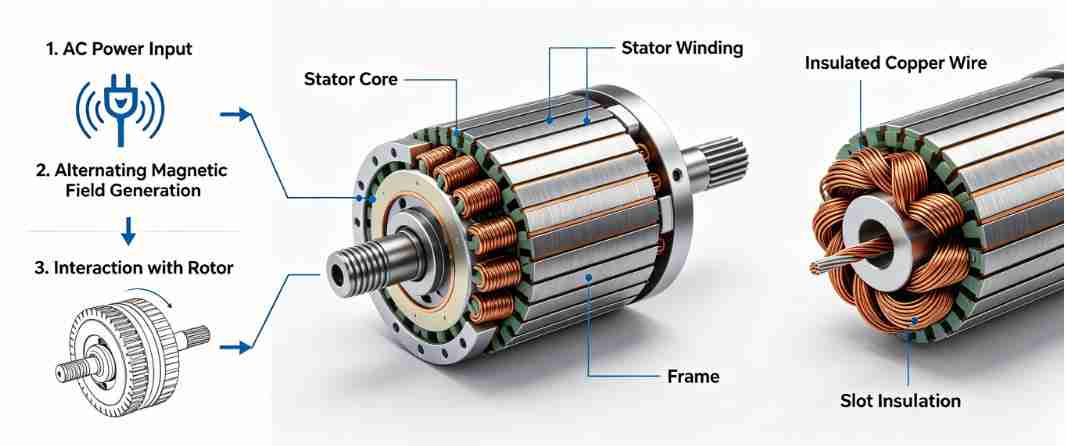

motor stator design
Today, are widely used in:
- Electric vehicles
- Industrial automation
- Aerospace systems
- Robotics
- Home appliances
- Renewable energy systems
- CNC equipment
- Electric motorcycles
Because electric motors are now essential in modern industries, stator technology continues to improve rapidly. In addition, manufacturers focus more on efficiency, compact design, thermal performance, and power density. Therefore, advanced motor stator solutions are becoming increasingly important in Europe and North America.
Moreover, modern industries demand motors that are smaller, lighter, and more efficient. As a result, stator design has become a major factor in motor performance optimization.
What Is a Stator in a Motor?
A stator in a motor is the stationary part of the electrical machine. It surrounds the rotor and creates the electromagnetic field that drives rotation.
The word “stator” comes from the word “stationary.” Unlike the rotor, the stator does not move during operation.
Typically, includes:
- Stator core
- Copper windings
- Insulation system
- Housing structure
- Cooling channels
When electric current flows through the windings, the stator generates a magnetic field. Then, this field interacts with the rotor. As a result, the rotor spins and produces mechanical motion.
Therefore, the stator directly affects:
- Motor efficiency
- Torque output
- Speed stability
- Thermal performance
- Noise level
- Power density
Because of this, stator quality plays a major role in motor reliability and long-term durability.
How a Motor Stator Works
Electromagnetic Field Generation
The stator works by creating a rotating magnetic field.
First, alternating current flows through the copper windings. Then, the current creates magnetic poles inside the stator core. Next, the magnetic field rotates around the motor.
As the magnetic field moves, it pulls the rotor along with it. Consequently, the rotor begins rotating.
This process converts electrical energy into mechanical energy.
Moreover, efficient magnetic field control improves motor performance significantly. Therefore, advanced stator engineering is critical for modern electric drive systems.
Interaction Between Stator and Rotor
The rotor and stator work together continuously.
The stator produces the magnetic field, while the rotor responds to it.
Because of this interaction:
- Torque is generated
- Speed is controlled
- Mechanical output is produced
In addition, the air gap between the stator and rotor strongly affects efficiency.
If the air gap is too large, magnetic losses increase. However, if the gap is too small, mechanical contact risks rise.
Therefore, precision manufacturing is extremely important.

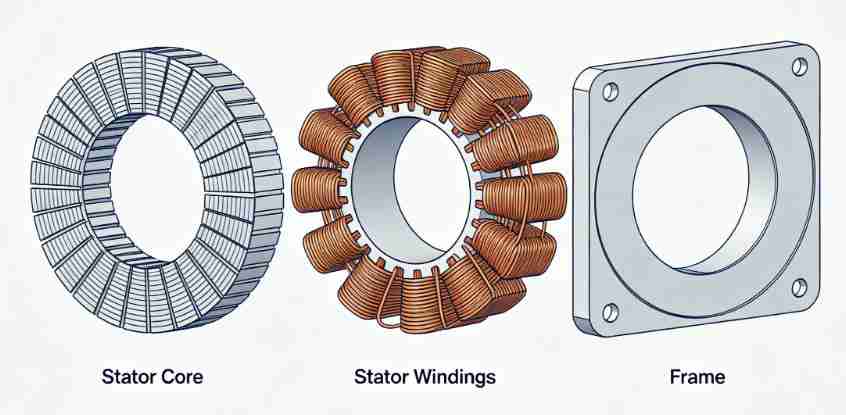

Main Components of a Motor Stator
Stator Core Structure
The stator core guides magnetic flux through the motor.
Manufacturers usually build the core using laminated electrical steel sheets. These laminations reduce eddy current losses.
As a result, the motor becomes more efficient.
what is a stator
Moreover, thinner laminations improve high-frequency performance. Therefore, many high-speed motors use advanced stator materials.
Common stator core materials include:
- Silicon steel
- Soft magnetic composites
- High-frequency electrical steel
- Nanocrystalline materials
Because material quality directly affects efficiency, stator core selection is extremely important.
Copper Windings in a Motor Stator
Copper windings create the electromagnetic field.
When current flows through the winding coils, magnetic poles form around the stator.
Therefore, winding quality directly affects:
- Torque production
- Motor efficiency
- Heat generation
- Energy consumption
Today, many manufacturers use hairpin winding technology because it offers:
- Higher slot fill factor
- Better thermal conductivity
- Improved automation
- Higher production consistency
In addition, optimized winding layouts help reduce copper losses.
Consequently, modern EV motors increasingly use advanced winding systems.
Stator Insulation System
The insulation system protects the windings from electrical failure.
Because motors operate under high voltage and high temperature conditions, insulation reliability is critical.
Typical insulation materials include:
- Epoxy resin
- Polyimide film
- High-temperature varnish
- Composite insulation paper
Moreover, better insulation improves motor lifespan.
Therefore, high-end industrial and EV motors use advanced insulation technologies.
Stator Housing and Support Structure
The stator housing supports the motor structure.
At the same time, it helps manage vibration and thermal expansion.
Manufacturers often use:
- Aluminum alloy
- Cast iron
- Steel housing
- Lightweight composite materials
Because lightweight structures improve efficiency, aluminum housing is increasingly common in electric mobility applications.
Types of Motor Stators
AC Motor Stator
AC motors use alternating current to generate the rotating magnetic field.
These stators are common in:
- Industrial machinery
- Pumps
- Compressors
- HVAC systems
Because AC motors are reliable and efficient, they remain widely used worldwide.
DC Motor Stator
DC motor stators support direct current systems.
Some DC motors use permanent magnets instead of wound stators.
These motors are often found in:
- Automotive systems
- Portable devices
- Small electric tools
However, brushless DC motors now dominate many modern applications.
Brushless Motor Stator
Brushless motor stators are widely used in high-efficiency systems.
Unlike brushed motors, they eliminate physical brush contact.
As a result, brushless motors provide:
- Lower maintenance
- Higher efficiency
- Longer lifespan
- Reduced noise
Therefore, brushless motor stators are common in:
- EV traction motors
- Drones
- Robotics
- Industrial automation
Axial Flux Motor Stator
Axial flux motor stators use a disc-shaped structure.
Unlike traditional radial motors, the magnetic flux moves parallel to the shaft.
Because of this design:
- Torque density improves
- Weight decreases
- Motor size becomes smaller
Consequently, axial flux stators are increasingly used in:
- Electric aircraft
- High-performance EVs
- Aerospace systems
- Compact propulsion systems
Radial Flux Motor Stator
Radial flux stators are the traditional motor design.
In these motors, magnetic flux moves outward from the rotor center.
Although this design is older, it remains highly popular because manufacturing systems are mature.
Therefore, many industrial motors still use radial flux stators.
Why Motor Stator Design Matters
Motor Efficiency Improvement
The stator strongly affects motor efficiency.
For example:
- Better winding design reduces copper losses
- High-quality laminations reduce iron losses
- Improved cooling lowers heat buildup
As a result, energy consumption decreases.
Therefore, stator optimization is critical for energy-efficient motors.
Thermal Management Performance
Heat is one of the biggest challenges in electric motors.
Because the stator contains the windings, much of the heat originates there.
Therefore, cooling performance becomes extremely important.
Common cooling methods include:
- Air cooling
- Liquid cooling
- Oil cooling
- Direct winding cooling
In addition, advanced thermal management improves continuous power capability.
Consequently, high-performance EV motors rely heavily on optimized stator cooling systems.
Torque and Power Density
Motor torque depends greatly on stator design.
For example:
- Larger winding area improves magnetic strength
- Better magnetic materials increase flux density
- Optimized slot geometry improves performance
As a result, the motor can generate higher torque in a smaller package.
Therefore, stator engineering directly supports compact motor development.
Noise and Vibration Reduction
Poor stator design can increase vibration and acoustic noise.
However, advanced manufacturing helps reduce these problems.
For instance:
- Precision laminations improve magnetic balance
- Better bonding technology reduces vibration
- Optimized slot design lowers noise
Consequently, premium motor systems achieve smoother operation.
Motor Stator Manufacturing Process
Electrical Steel Lamination Stamping
The manufacturing process starts with lamination stamping.
Thin electrical steel sheets are stamped into precise shapes.
Because laminations reduce eddy current losses, they improve efficiency significantly.
Moreover, high-precision stamping improves magnetic consistency.
Stator Core Bonding Technology
Modern stators increasingly use bonding instead of welding.
Bonding technology offers several advantages:
- Lower deformation
- Better dimensional accuracy
- Reduced core loss
- Improved NVH performance
As a result, bonded stators are becoming more common in EV motor manufacturing.
Coil Winding Process
After core assembly, manufacturers insert copper windings into the stator slots.
Today, automated winding systems improve:
- Production speed
- Winding accuracy
- Consistency
- Efficiency
Hairpin winding technology is especially popular in EV motors.
Because of its high slot fill factor, it supports high power density.
Insulation and Resin Treatment
Next, the stator receives insulation treatment.
Manufacturers often use vacuum pressure impregnation processes.
This step improves:
- Electrical insulation
- Mechanical strength
- Thermal resistance
Consequently, motor durability improves significantly.
Final Testing and Inspection
Finally, manufacturers perform:
- Electrical testing
- Thermal testing
- Vibration testing
- Efficiency validation
- High-voltage testing
These tests ensure reliable long-term operation.
Electric Vehicle Motor Stators
EV motor stators require:
- High efficiency
- Compact size
- Strong thermal performance
- High torque density
Therefore, modern EV stators use advanced winding and cooling technologies.
Moreover, lightweight designs help improve driving range.
Industrial Automation Systems
Factories rely heavily on motor stators for automation systems.
Applications include:
- Conveyor systems
- Robotic arms
- CNC machines
- Packaging equipment
Because industrial systems often run continuously, reliability is extremely important.
Aerospace Motor Systems
Aerospace systems demand lightweight and high-power motors.
Therefore, aerospace stators use:
- Advanced magnetic materials
- Lightweight structures
- High-temperature insulation
In addition, compact design helps reduce aircraft weight.
Renewable Energy Equipment
Wind turbines and renewable systems also use advanced motor stators.
Because energy efficiency matters greatly, optimized stator designs improve total energy conversion.
Consequently, renewable energy systems increasingly adopt high-efficiency stator technology.
Robotics and Precision Equipment
Robotic systems require:
- Fast response
- Compact size
- Precise motion control
Therefore, stator performance directly affects robotic accuracy.
Moreover, low-noise operation improves system stability.
Overheating
Excess heat can damage insulation and windings.
Common causes include:
- Overload conditions
- Poor cooling
- High ambient temperature
Therefore, thermal management is essential.
Insulation Failure
Insulation breakdown can cause electrical short circuits.
As a result, motor failure may occur.
Therefore, high-quality insulation systems are critical.
Magnetic Losses
Poor magnetic materials increase core losses.
Consequently, efficiency decreases.
Therefore, manufacturers continue improving lamination technology.
Vibration Issues
Mechanical imbalance can increase vibration.
Moreover, vibration reduces motor lifespan.
Therefore, precision assembly is very important.
High-Efficiency Motor Development
Energy regulations continue becoming stricter worldwide.
As a result, manufacturers focus more on high-efficiency stator technology.
Advanced Cooling Systems
Direct cooling methods are becoming more common.
Because they remove heat faster, continuous performance improves significantly.
Smart Manufacturing
Automation improves manufacturing consistency.
Consequently, production quality becomes more stable.
Lightweight Motor Structures
Manufacturers increasingly use lightweight materials.
As a result, electric mobility systems become more efficient.
AI-Based Motor Optimization
Artificial intelligence now supports:
- Thermal analysis
- Electromagnetic simulation
- Predictive maintenance
Therefore, motor development cycles become faster and more accurate.
How to Choose the Right Motor Stator Supplier
Engineering Capability
Choose suppliers with strong R&D capability.
Important areas include:
- Electromagnetic simulation
- Thermal analysis
- Winding optimization
- Prototype testing
Manufacturing Technology
Advanced production systems improve quality.
Look for suppliers with:
- Automated winding
- Precision stamping
- Bonding technology
- Advanced testing systems
Quality Control Standards
Reliable manufacturers perform strict inspections.
For example:
- Thermal validation
- Electrical testing
- Efficiency testing
- Durability testing
Therefore, quality systems are essential.
Global Supply Chain Support
EU and North American customers often require stable delivery capability.
Consequently, global manufacturing support becomes highly valuable.
What is a stator in a motor?
A stator is the stationary part of an electric motor that creates the magnetic field required for rotation.
What does a motor stator do?
The stator generates the electromagnetic field that interacts with the rotor to produce torque and motion.
What materials are used in motor stators?
Common materials include:
- Electrical steel
- Copper windings
- Insulation materials
- Aluminum housing
Why is the stator important?
The stator directly affects:
- Efficiency
- Torque
- Heat generation
- Reliability
- Motor lifespan
What is the difference between stator and rotor?
The stator remains stationary, while the rotor rotates inside the motor.
Which industries use advanced motor stators?
Major industries include:
- Electric vehicles
- Aerospace
- Robotics
- Industrial automation
- Renewable energy
Conclusion
The motor stator is one of the most critical components in any electric motor system. Because it generates the magnetic field required for motion, it directly affects efficiency, torque, thermal performance, noise level, and overall reliability.
Today, industries across Europe and North America increasingly demand high-efficiency motor solutions. As a result, advanced stator technologies continue evolving rapidly. Moreover, innovations in winding systems, cooling methods, bonding technology, and lightweight materials are improving motor performance further.
Consequently, modern motor stator solutions now support a wide range of applications, including EVs, aerospace propulsion, industrial automation, robotics, renewable energy systems, and high-performance electric drive platforms.
For OEM manufacturers, industrial suppliers, and engineering companies, investing in advanced stator technology can improve energy efficiency, reduce operating costs, and strengthen long-term market competitiveness.
