What Is a Stator? A Complete Guide to Electric Motor Stators, Motor Cores, and Magnetic Field Systems

The stator is the stationary part of an electric motor or generator. It works together with the rotor, which is the rotating component inside the machine. In simple terms, the motor stays fixed while the rotor moves. These two parts interact to convert electrical energy into mechanical energy or mechanical energy into electrical energy.

The main function of the stator is to create a magnetic field. This magnetic field interacts with the rotor and causes rotational movement. As a result, the motor can produce motion efficiently and reliably. Whether in AC motors, DC motors, synchronous motors, or induction motors, the stator remains one of the most important motor components.

Modern industries rely heavily on motor technology. From electric vehicles and industrial automation to household appliances and renewable energy systems, stators play a key role in improving motor efficiency, performance, and reliability.

Basic Concepts of a Motor Stator

A stator is the stationary electromagnetic component inside a rotating electrical machine. It mainly consists of three important parts:

• Stator core
• motor windings
• Motor frame or housing

Together, these parts generate and control the magnetic field required for energy conversion.

Stationary Structure of the Stator

Unlike the rotor, the stator does not rotate with the motor shaft. Instead, it is securely fixed inside the motor housing. Because of this stable structure, the motor can support the generation of a controlled magnetic field during motor operation.

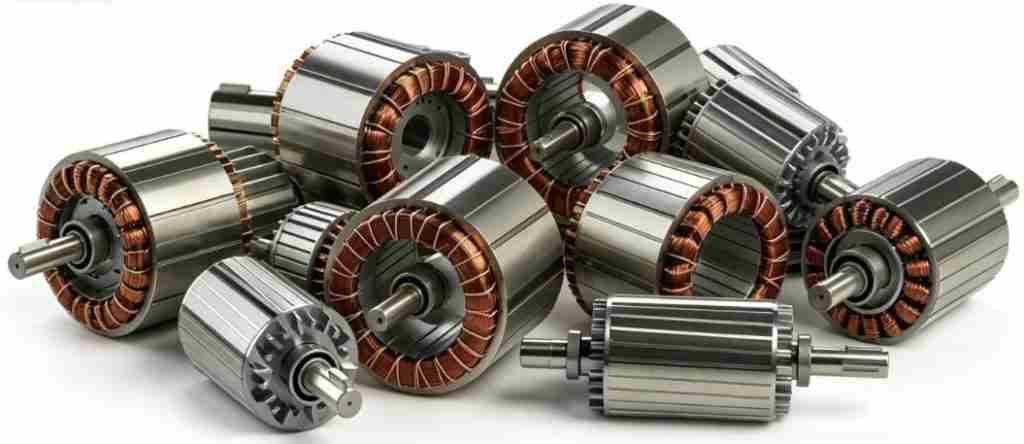

In most electric motors, the rotor spins inside the stator. The interaction between these components produces torque and mechanical motion.

Main Components of the Stator

The motor structure is carefully designed to maximize magnetic performance and reduce energy loss.

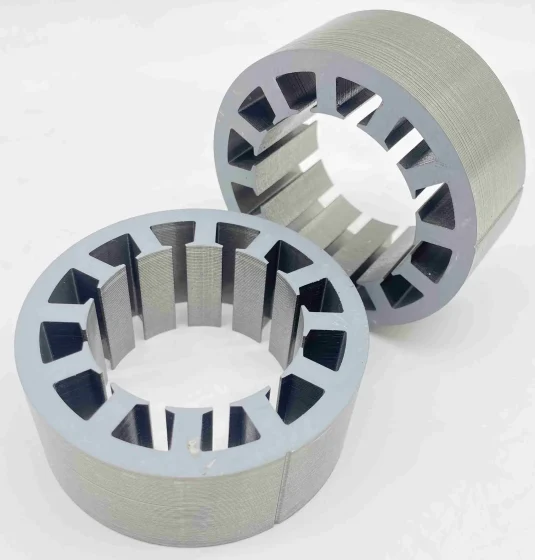

Stator Core

The stator core is usually made from laminated silicon steel sheets with a thickness of approximately 0.3 mm to 0.5 mm. These laminations reduce eddy current losses and improve magnetic permeability.

Additionally, the laminated structure helps reduce heat generation and improves motor efficiency. The stator core also provides the main magnetic path for the motor.

Stator Windings

The stator windings are insulated coils made mainly from copper wire or aluminum conductors. When electrical current passes through these windings, a magnetic field is produced.

Depending on the motor design, the windings may use:

• Concentrated windings
• Distributed windings

Each winding type affects torque, efficiency, heat dissipation, and motor performance differently.

Motor Housing and Frame

The motor housing supports and protects the motor assembly. At the same time, it helps dissipate heat generated during operation.

A strong motor frame also protects internal components from vibration, dust, moisture, and external damage.

How a Stator Works in an Electric Motor

The operating principle of a stator is based on electromagnetic induction. When electrical current flows through the motor windings, a magnetic field forms around the coils.

This magnetic field then interacts with the rotor to create torque and rotational movement.

Rotating Magnetic Field in AC Motors

In AC motors, especially three-phase induction motors, alternating current flows through symmetrically arranged motor windings. Consequently, a rotating magnetic field is generated.

As the magnetic field rotates, it induces current inside the rotor. This interaction produces electromagnetic force and causes the rotor to spin.

Because of this process, AC induction motors are widely used in industrial applications.

Fixed Magnetic Field in DC Motors

In DC motors and permanent magnet motors, the stator may generate a fixed magnetic field using:

• Permanent magnets
• Excitation windings

The rotor then rotates within this constant magnetic field to produce mechanical motion.

---

Main Types of Stators Used in Electric Motors

Different motor designs require different motor structures. Therefore, are available in several forms depending on the application.

Synchronous Motor Stator

A synchronous motor stator contains multiple windings that generate a stable rotating magnetic field.

As a result, the rotor rotates at the same speed as the magnetic field frequency. This synchronized operation provides:

• Precise speed control
• High efficiency
• Stable performance

Synchronous motors are commonly used in industrial drives, compressors, and power systems.

Asynchronous Motor Stator

An asynchronous motor stator,  operates through electromagnetic induction.

Unlike synchronous motors, the rotor speed is not exactly equal to the supply frequency. Instead, slight speed differences create the induction effect required for operation.

Because of their simple structure and reliability, asynchronous motors are widely used in:

• Pumps
• Fans
• Conveyor systems
• Industrial machinery

Brushless Motor Stator

Brushless motors use advanced designs combined with electronic control systems.

Compared with traditional brushed motors, brushless motor stators offer:

• Higher efficiency
• Lower maintenance requirements
• Longer service life
• Better speed control

Today, brushless DC motors are commonly found in electric vehicles, drones, robotics, and smart appliances.

Applications of Stators in Modern Industries

motors are essential in nearly all rotating electrical machines. Therefore, their applications continue to expand across many industries.

Industrial Automation Systems

Industrial equipment relies heavily on electric motors:

• Conveyor belts
• Robotic systems
• Manufacturing equipment
• CNC machinery

Efficient stator design directly improves production efficiency and reduces energy consumption.

Household Appliances

Many home appliances use electric motors equipped with, including:

• Washing machines
• Refrigerators
• Air conditioners
• Vacuum cleaners

In these products, the stator significantly affects operating efficiency, noise levels, and durability.

Power Generation Industry

Large generators in power plants use stators to convert mechanical energy into electrical energy.

These generator are critical in maintaining stable electricity production for the power grid.

Electric Vehicles and EV Motors

Electric vehicles depend on high-performance motor stators to achieve better:

• Energy efficiency
• Driving range
• Torque output
• Acceleration performance

As EV technology advances, optimization has become increasingly important for modern transportation systems.

Common Stator Materials and Manufacturing Technologies

Modern motor manufacturers continuously improve materials to increase efficiency and reduce energy loss.

Silicon Steel Laminations

Silicon steel remains the most common stator core material because it offers:

• High magnetic permeability
• Low core loss
• Good thermal performance

Thin laminations also reduce eddy current losses significantly.

Copper Windings

Copper is widely used for stator windings due to its excellent electrical conductivity and heat resistance.

Although aluminum windings cost less, copper usually provides better efficiency and durability.

Advanced Manufacturing Methods

New technologies are transforming stator production, including:

• Laser welding
• Hairpin winding technology
• Automated coil winding
• 3D printing

These innovations improve motor performance while reducing manufacturing costs.

Maintenance and Care of Motor Stators

Proper maintenance helps extend motor lifespan and prevent unexpected failures.

Inspect Insulation Regularly

Damaged insulation may cause:

• Short circuits
• Electrical leakage
• Motor failure

Therefore, insulation testing should be performed regularly.

Keep the Motor Clean

Dust and debris can block airflow and reduce heat dissipation efficiency.

As a result, regular cleaning helps prevent overheating and improves motor reliability.

Monitor Temperature and Current

Abnormal current fluctuations or excessive temperatures may indicate stator problems.

Early monitoring allows technicians to identify issues before serious damage occurs.

Lubricate Bearings Properly

Although the stator itself remains stationary, motor bearings support rotor movement. Proper lubrication reduces friction and improves operational stability.

---

Future Trends in Stator Technology

As electric motor technology evolves, design continues to improve rapidly.

High-Efficiency Motor Systems

Future stators will focus heavily on:

• Energy efficiency
• Reduced power loss
• Lightweight designs
• Improved thermal management

These improvements are especially important for electric vehicles and renewable energy systems.

Smart Motor Control Technology

Advanced electronic control systems are enabling smarter stator operation through:

• Real-time monitoring
• Intelligent diagnostics
• Predictive maintenance
• AI-based motor optimization

Consequently, motors will become more efficient and reliable.

New Materials and Innovative Designs

Emerging technologies such as nanomaterials and additive manufacturing may completely transform stator production in the future.

Additionally, advanced cooling systems and compact motor architectures will further enhance motor performance.

---

Conclusion

The stator is one of the most critical components in electric motors and generators. Although it remains stationary during operation, it plays a central role in creating the magnetic field required for energy conversion.

From industrial automation and home appliances to electric vehicles and renewable energy systems, stators support countless modern technologies. Furthermore, advancements in materials, winding technologies, and intelligent motor control systems continue to improve motor efficiency and reliability.

By understanding how motor work, users can make better decisions regarding motor selection, maintenance, and performance optimization. As motor technology continues to evolve, will remain at the heart of efficient and sustainable electrical systems.
