Why Are Motor Cores Designed with a Laminated Structure?

In modern electrical engineering, motors are among the most critical power equipment. As a result, their efficiency, energy consumption, and operational stability receive significant attention across industries. Among the many factors that influence motor performance, the structure of the motor core plays a particularly crucial role.

At present, most motors adopt a laminated core structure. This naturally raises an important question: why do manufacturers choose a laminated design for motor cores? More importantly, what practical advantages does this structure provide in real-world applications? To answer these questions, this article offers a systematic analysis covering working principles, performance characteristics, and key manufacturing processes.

What Is a Motor Core?

Essentially, the motor core is the central component responsible for conducting magnetic flux and forming the motor’s magnetic circuit. In other words, its main function is to concentrate magnetic flux and strengthen electromagnetic interaction. Through this mechanism, the motor achieves efficient energy conversion between electrical and mechanical power.

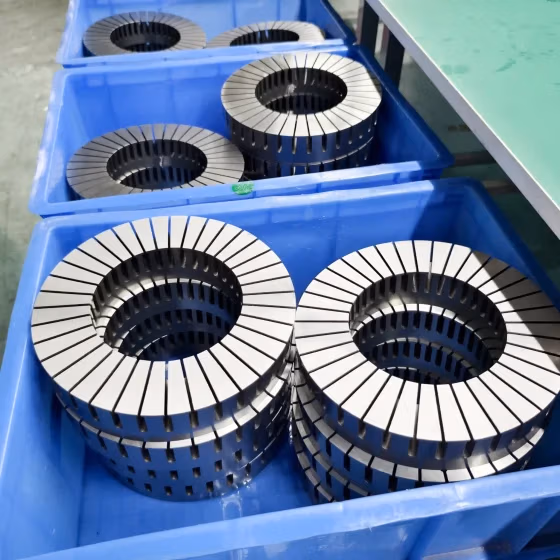

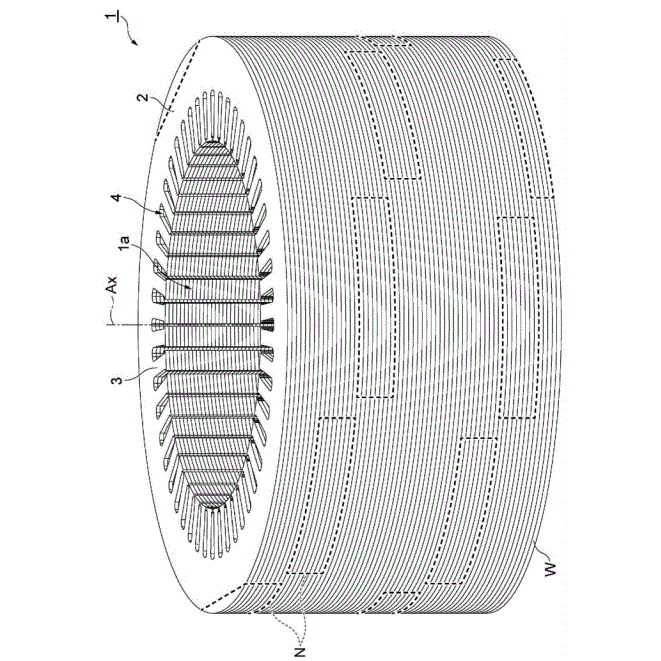

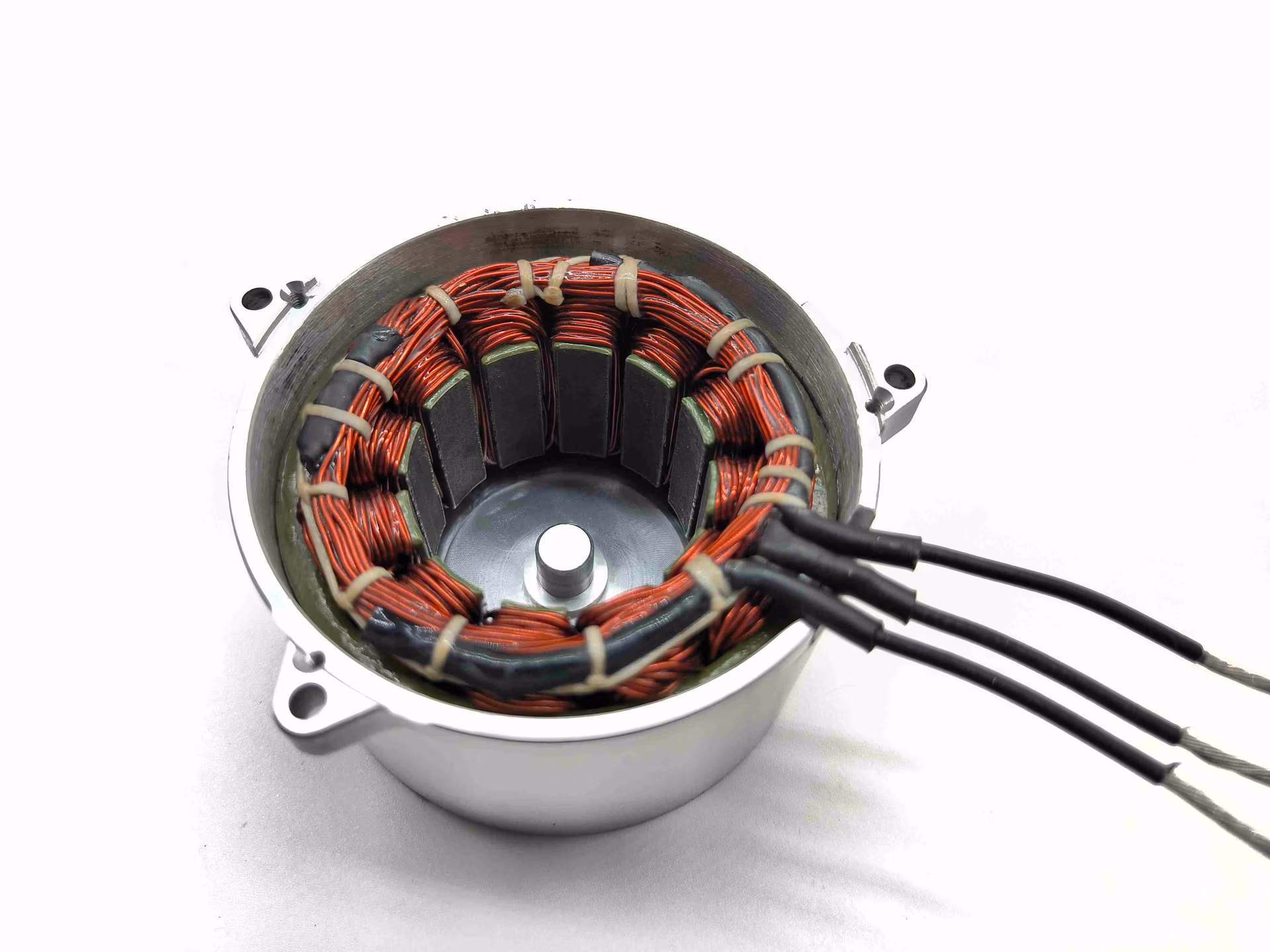

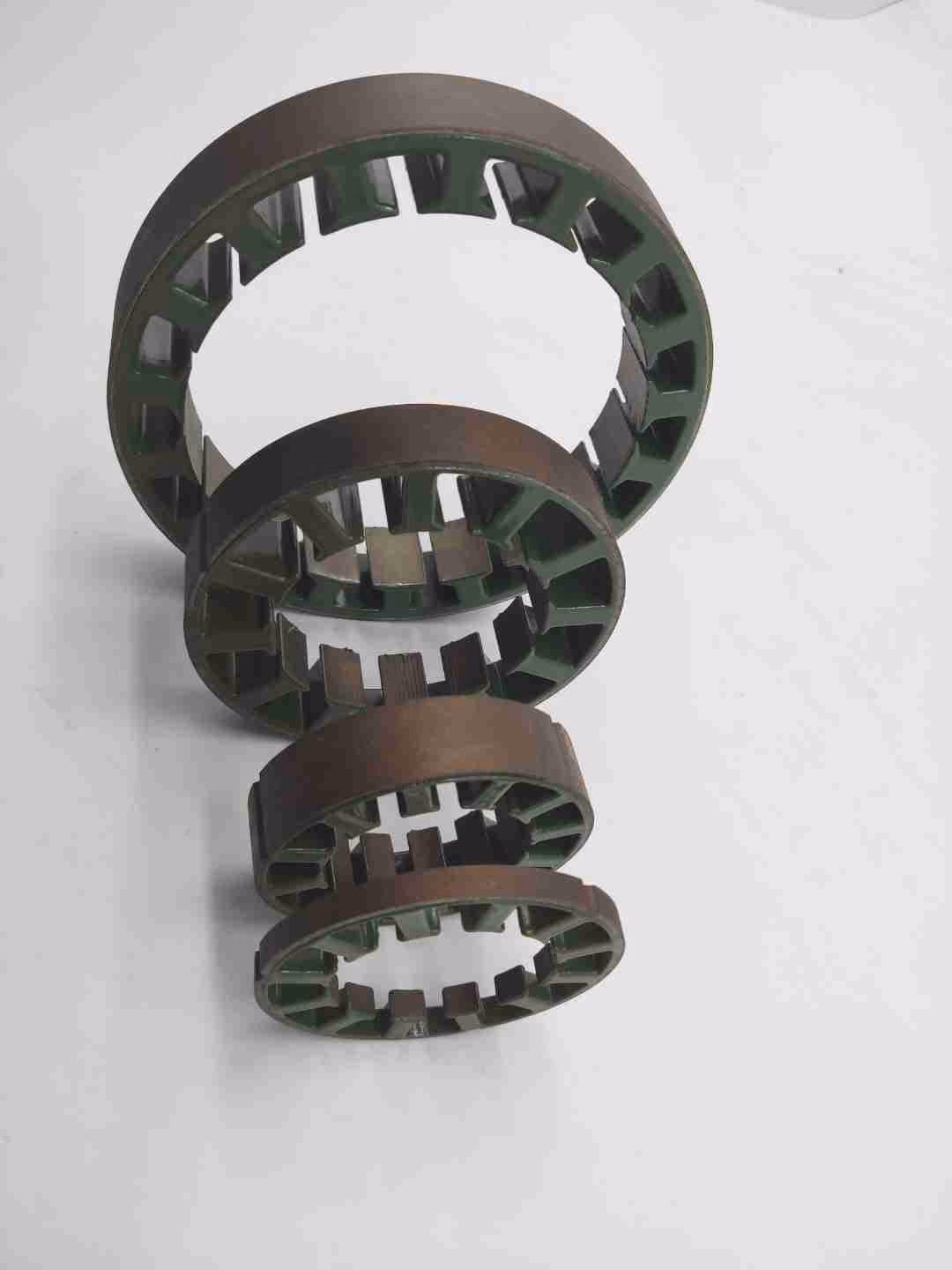

In practical applications, manufacturers typically form motor cores by laminating multiple silicon steel sheets. Specifically, separate laminated cores are used for the stator and the rotor. Consequently, both material selection and structural design have a direct impact on motor efficiency, energy losses, and long-term operational lifespan.

Primary Reasons for Adopting a Laminated Structure in Motor Cores

1. Effectively Reducing Eddy Current Losses

During motor operation, alternating magnetic fields within the core generate eddy currents. These currents cause core heating, increase energy loss, and reduce motor efficiency.

The laminated structure breaks the solid core into multiple layers of insulated silicon steel sheets. This significantly shortens the eddy current path, effectively suppressing eddy current generation and substantially reducing eddy current losses.

2. Enhancing Permeability and Electromagnetic Efficiency

Laminated cores typically utilize high-performance silicon steel material, offering superior permeability and lower hysteresis loss.

Additionally, by carefully controlling laminate thickness and stacking quality, a well-defined closed magnetic circuit is formed. This concentrates magnetic flux, thereby improving the motor’s overall electromagnetic efficiency.

3. Improved Temperature Rise and Heat Dissipation

Excessive core temperature rise compromises long-term stable motor operation.

The laminated structure facilitates heat dispersion and conduction. Combined with optimized core design, it effectively lowers operating temperatures, reducing performance degradation and failure risks caused by overheating.

4. Reduced Operating Noise and Vibration

Compared to monolithic cores, laminated cores effectively mitigate magnetostriction effects during operation, thereby reducing vibration transmission and noise levels.

This advantage is particularly crucial in low-noise motors, home appliances, electric vehicles, and precision equipment.

5. Enhanced Suitability for High-Frequency Operation

As high-frequency and high-speed motors gain broader application, the core structure’s adaptability to high-frequency magnetic fields becomes critical.

Laminated cores demonstrate greater stability under high-frequency conditions. By optimizing silicon steel sheet thickness and insulation coatings, motor efficiency and reliability during high-frequency operation can be significantly enhanced.

Manufacturing Process for Laminated Cores

Achieving high-performance laminated structures hinges on critical manufacturing processes, primarily comprising the following steps:

1. Material Selection

Material selection marks the first step in motor core quality. Engineers choose low-loss, high-permeability silicon steel sheets to build a strong foundation for better magnetic performance and higher motor efficiency.

2. Stamping and Forming

During stamping and forming, precision dies shape the silicon steel sheets into stator or rotor laminations. This process ensures consistent dimensions and stable quality throughout production.

3. Heat Treatment

After stamping, the production team applies heat treatment. Annealing removes internal stresses from forming and restores the original magnetic properties of the silicon steel sheets.

4. Insulation Coating

During insulation coating, technicians apply a uniform insulating layer to each sheet surface. This step prevents electrical contact between laminations and reduces eddy current losses, improving long-term motor reliability.

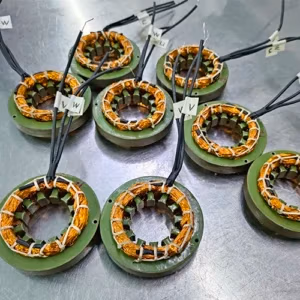

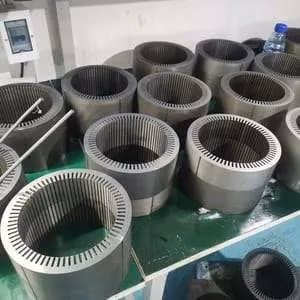

5. Lamination and Assembly

Finally, operators stack and assemble the silicon steel sheets into motor cores according to design specifications. They ensure a tight fit and good flatness to support stable motor operation.

Applications of Laminated Structures in Different Motors

AC Motors

Widely used in industrial drive systems, laminated structures significantly enhance efficiency and reduce energy consumption.

DC Motors

Laminated cores improve torque output and operational stability.

Specialty Motors

Laminated structures have become nearly standard in servo motors, high-frequency motors, and precision motors.

Future Development Trends

As motor technology advances, laminated core structures continue to evolve. Key future directions include:

• Thinner silicon steel sheets and low-loss materials
• Automated and intelligent manufacturing processes
• Customized core designs for new energy vehicles and renewable energy applications
• In sectors like electric vehicles, wind power, and smart manufacturing, laminated cores will see increasingly broad application prospects.

Summary

The laminated structure in motor cores not only effectively reduces eddy current losses and boosts motor efficiency but also improves temperature rise, lowers noise, and meets high-frequency operation demands.

With the development of new energy and high-efficiency motors, laminated core structures will remain a key technology in motor design.
