What Is an Axial Flux Motor?

An axial flux motor is a type of electric motor where the magnetic flux flows parallel to the motor shaft. In other words, the magnetic field moves along the axis of rotation.

By contrast, in traditional motors, the magnetic flux flows outward from the center. This is known as radial flux.

Because of this key difference, axial flux motors use a flat, disc-like structure. As a result, they are often called:

• Pancake motors
• Disc motors
• Flat motors

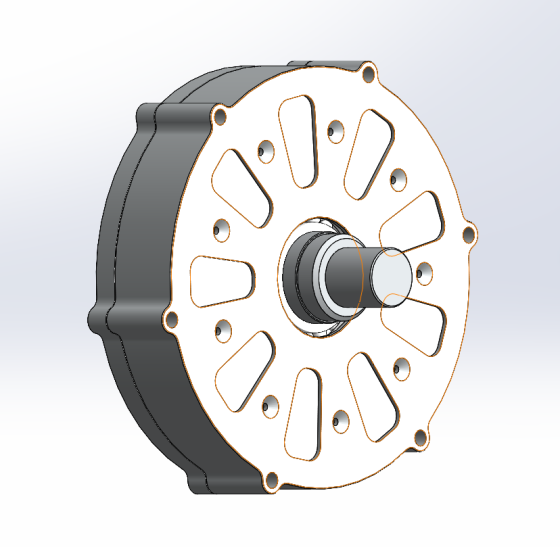

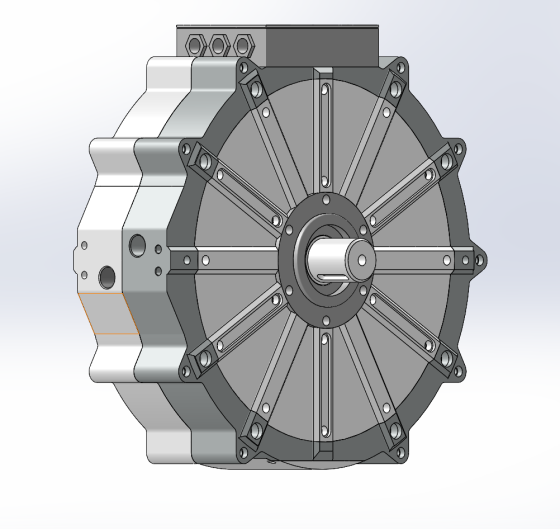

  Axial Flux Motor Appearance

Key Definition (SEO Featured Snippet Ready)

An axial flux motor is an electric motor in which magnetic flux flows along the axis of rotation, enabling a compact, flat design with high torque density and improved efficiency.

Why Axial Flux Motors Are Gaining Attention

In recent years, axial motors have gained strong attention across many industries. This includes electric vehicles, robotics, aerospace, and renewable energy systems. The reason is simple. Companies now need motors that are smaller, lighter, and more efficient.

At the same time, traditional motor designs are reaching their limits. Therefore, engineers are turning to new solutions. Among them, axial flux motor technology stands out.

So, what exactly is an axial flux motor? How does it work? And more importantly, why is it becoming a key choice in modern motor design?

In this guide, you will learn everything step by step. We will explain the structure, working principle, advantages, and real-world applications. In addition, we will explore how axial motors compare to radial flux motors. Finally, we will look at B2B opportunities and manufacturing trends.

How Does an Axial Flux Motor Work?

To understand axial motors, it helps to break the system into simple parts. Then, we can see how they work together.

Basic Components

An axial flux motor typically includes:

• Stator (stationary part with windings)
• Rotor (rotating disc with magnets)
• Air gap (space between rotor and stator)
• Shaft

Working Principle Explained

First, electric current flows through the stator windings. As a result, a magnetic field is created.

Next, this magnetic field interacts with the permanent magnets on the rotor. Because of this interaction, a force is generated.

Then, the rotor begins to rotate. As it spins, mechanical energy is produced.

At the same time, the axial alignment of the magnetic field allows for a shorter magnetic path. Therefore, energy loss is reduced.

Axial Flux vs Radial Flux Motors: Key Differences

Although both motor types serve the same purpose, their design and performance are quite different.

Structural Differences

• Axial motors are flat and compact
• Radial flux motors are cylindrical

Magnetic Flux Direction

• Axial: parallel to shaft
• Radial: perpendicular to shaft

Performance Comparison

As a result, axial motors are often preferred in high-performance applications.

---

Key Advantages of Axial Flux Motors

Now, let’s explore why axial motors are becoming so popular.

1. High Torque Density

First of all, axial motors deliver high torque in a small size. This is because the effective radius is larger.

Therefore, more force is generated without increasing motor size.

2. Compact and Lightweight Design

In addition, the flat structure reduces volume and weight. This is especially useful in electric vehicles and drones.

3. High Efficiency

Moreover, axial motors reduce energy loss. The shorter magnetic path improves efficiency.

As a result, less heat is generated.

4. Better Thermal Management

Because of the open structure, cooling is easier. This helps improve performance and lifespan.

5. Flexible Design Options

For example, axial motors can be designed as:

• Single rotor
• Dual rotor
• Multi-disc systems

Therefore, they can be customized for many applications.

---

Common Types of Axial Motor Designs

Although the concept is simple, there are several design variations.

Single Stator – Single Rotor

This is the simplest design. However, performance is limited.

Dual Rotor – Single Stator

This is the most common structure. It improves torque output and balance.

Multi-Disc Axial Flux Motor

This design stacks multiple rotors and stators. As a result, power density increases further.

---

Materials Used in Axial Motors

Material selection plays a key role in performance.

Magnetic Materials

• Silicon steel laminations
• Soft magnetic composites

Permanent Magnets

• Neodymium magnets (NdFeB)
• Ferrite magnets (lower cost option)

Conductive Materials

• Copper windings
• Aluminum alternatives

Because of these materials, efficiency and durability can be optimized.

Applications of Axial Flux Motors in Industry

Axial motors are now used in many fields. Let’s look at some key sectors.

Electric Vehicles (EVs)

First, EV manufacturers use axial motors for:

• Higher range
• Lower weight
• Better acceleration

Aerospace and Drones

Next, weight is critical in aerospace. Therefore, axial  motors are ideal.

Robotics and Automation

In robotics, compact motors improve precision and efficiency.

Renewable Energy Systems

For example, wind turbines benefit from high torque at low speeds.

Industrial Machinery

Finally, axial motors are used in high-performance equipment.

Axial Motors in Electric Vehicles: A Game Changer

Electric vehicles are one of the fastest-growing markets.

Because axial motors are compact, they free up space. As a result, battery capacity can increase.

In addition, higher efficiency means longer driving range.

Therefore, many EV companies are investing in this technology.
